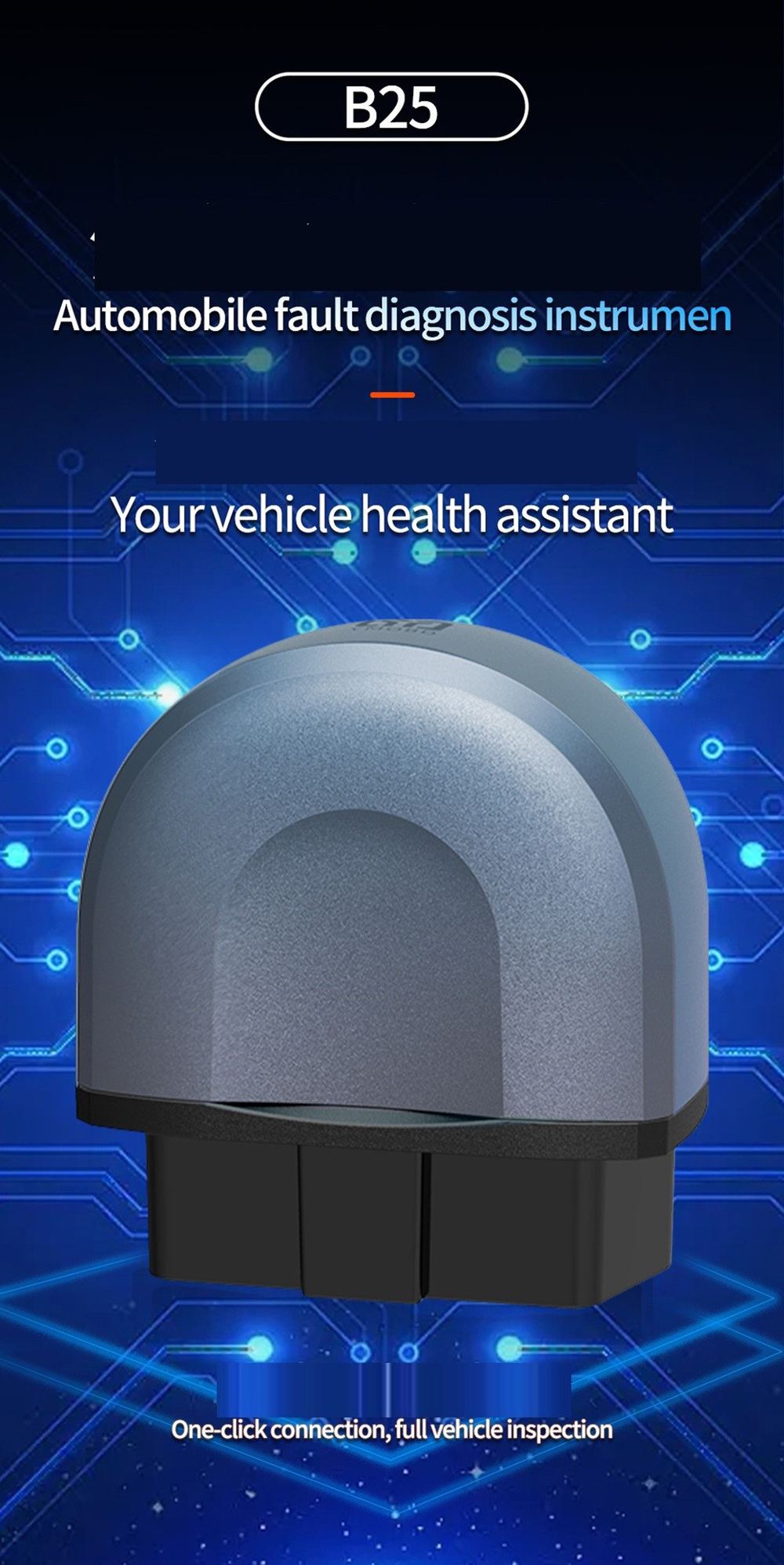

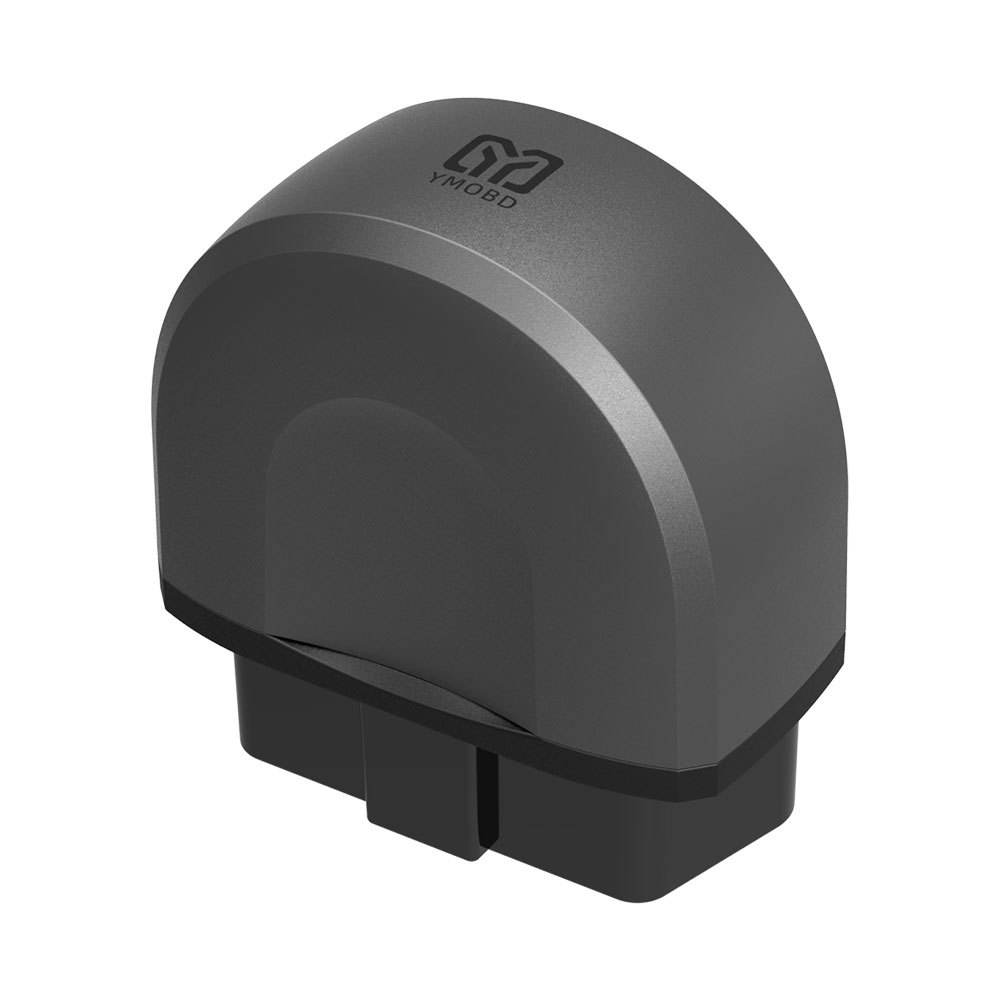

B25-K

Analyzer Multi-Function B25 Plastic Fault Detector Electric Power Diagnostic Scanner for Cars

Description
Make an inquiry

item	value
Type	Engine Analyzer
Voltage	12V
Power	24W
Applicable Models	connector every kinds car OBD
Combination	SDK
Place of Origin	usa
Brand Name	GP
Model Number	OEM
Warranty	3
Specification	Live Data
color	Black

Product Description

Detection function:

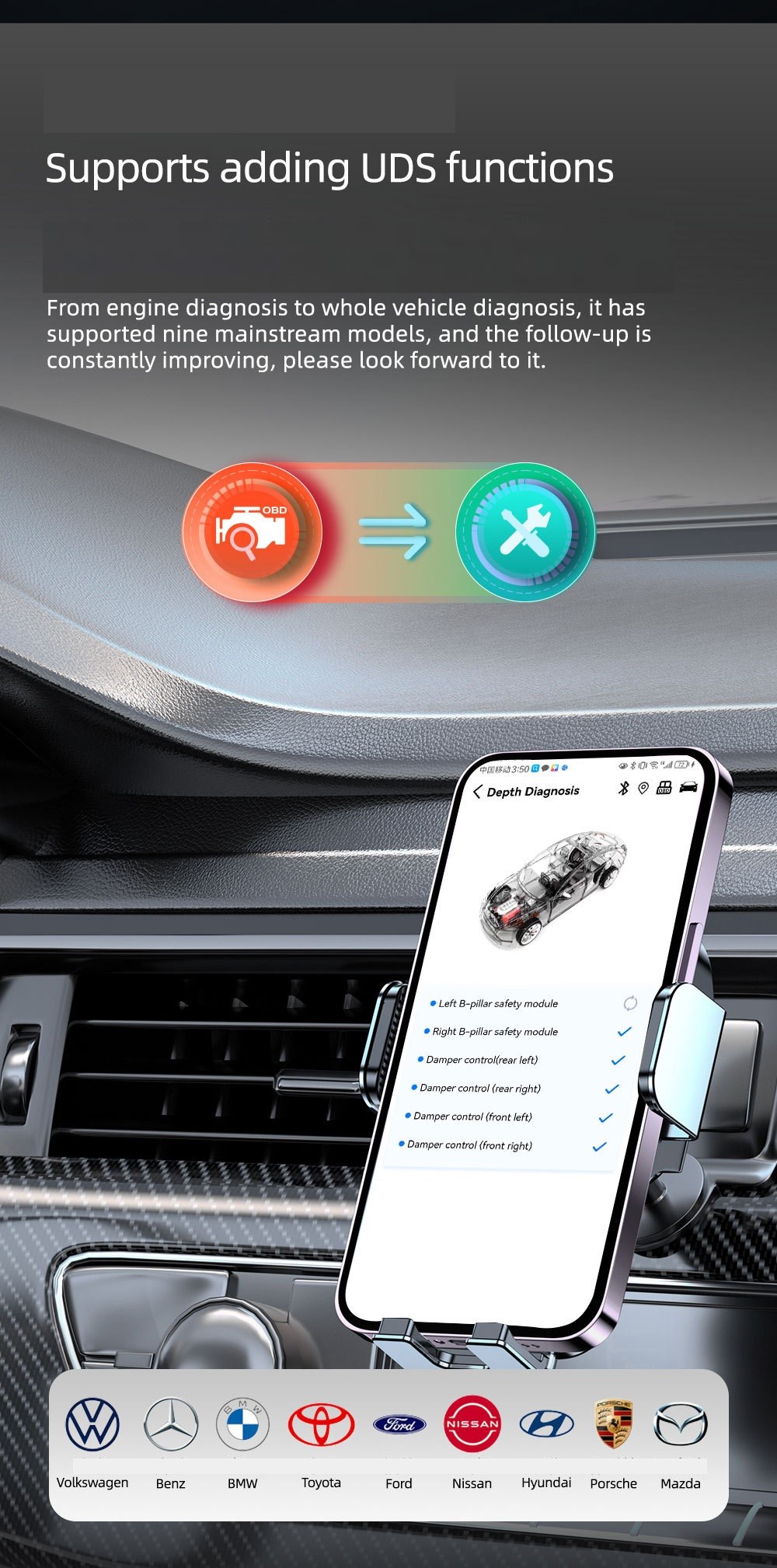

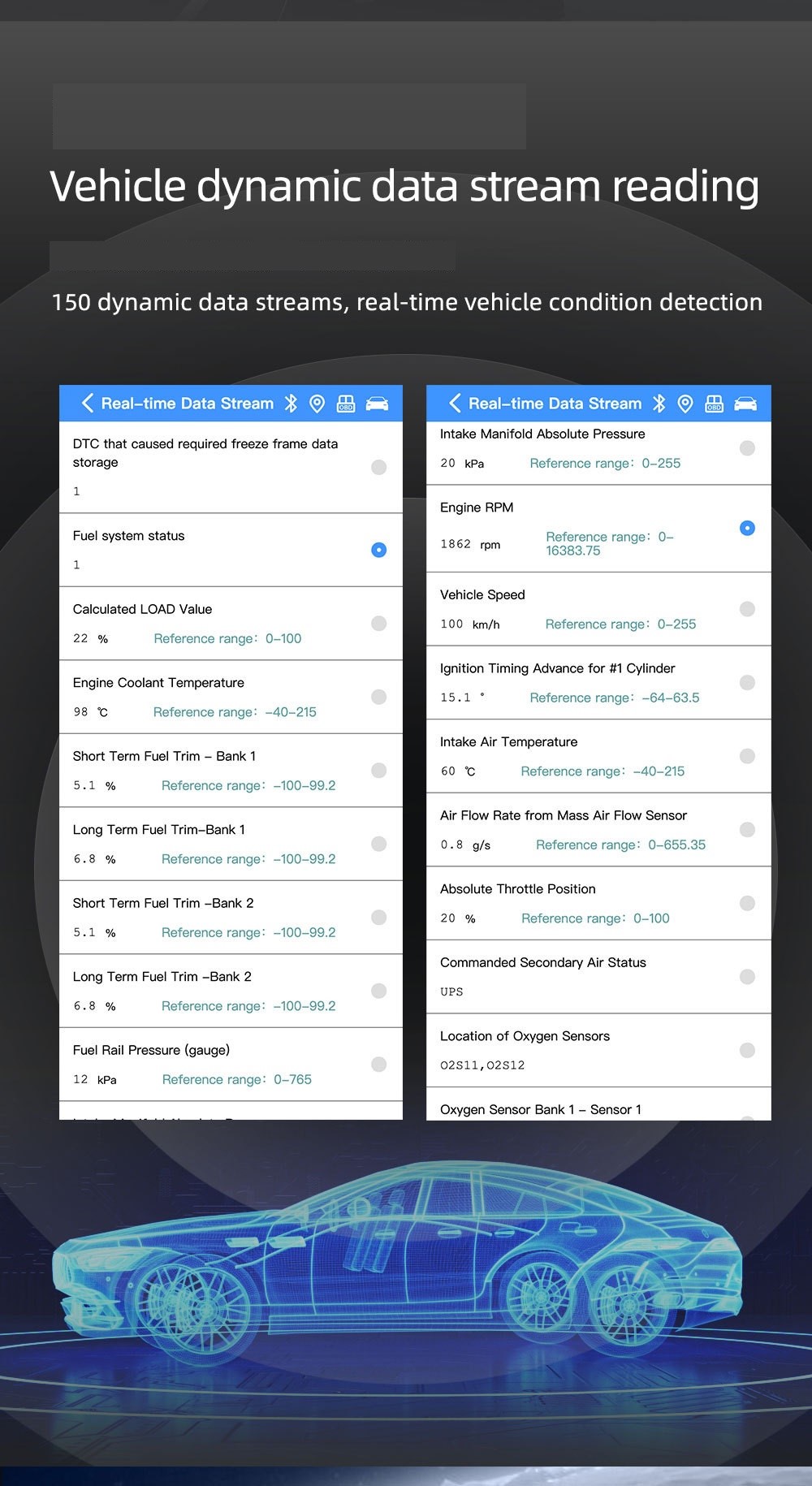

1, dashboard: vehicle speed, engine speed, driving fuel consumption, cooling temperature, battery voltage, fuel consumption instrument, can be customized dashboard; 2, support the whole car function diagnosis (Mercedes-Benz. BMW. Porsche. Volkswagen. Toyota. Ford. Mazda. Nissan. Hyundai) continue to upgrade and optimize the expansion of new vehicles and features 3, real-time data stream (frozen frame fault code, engine speed, oxygen sensor, including 88 kinds of data streams), real-time data stream storage and playback 4, freeze frame (all frames of the car) 5, fault code detection: support vehicle DTC fault code reading and clearing, fault code query 6. Fault indicator light detection 7. Diagnose the ready state 8. Specific monitoring results 9, vehicle information: vehicle basic information VIN (also called vehicle identification number or frame number), CALID, CVN and other parameters to read, widely used in all kinds of auto repair auto parts and other fields 10. One-click whole vehicle detection: basic vehicle information, fault code detection, vehicle monitoring information 11. Travel analysis (total mileage, time consuming, average speed, starting time, total fuel consumption, average fuel consumption) 12. Vehicle performance test (vehicle speed, engine speed) 13, vehicle annual inspection simulation (depending on different countries) 14. Firmware can be updated through YMOBD software to match the latest vehicles and extend new features.

Supported languages (25)：
English, Simplified Chinese, Traditional Chinese, Spanish, Korean, Russian, Japanese, Italian, Hindi, Portuguese, German, French, Dutch Finnish, Polish, Bengali, Hungarian, Czech, Thai, Turkish, Malay, Romanian, Swedish, Danish, Arabic

Product parameter：

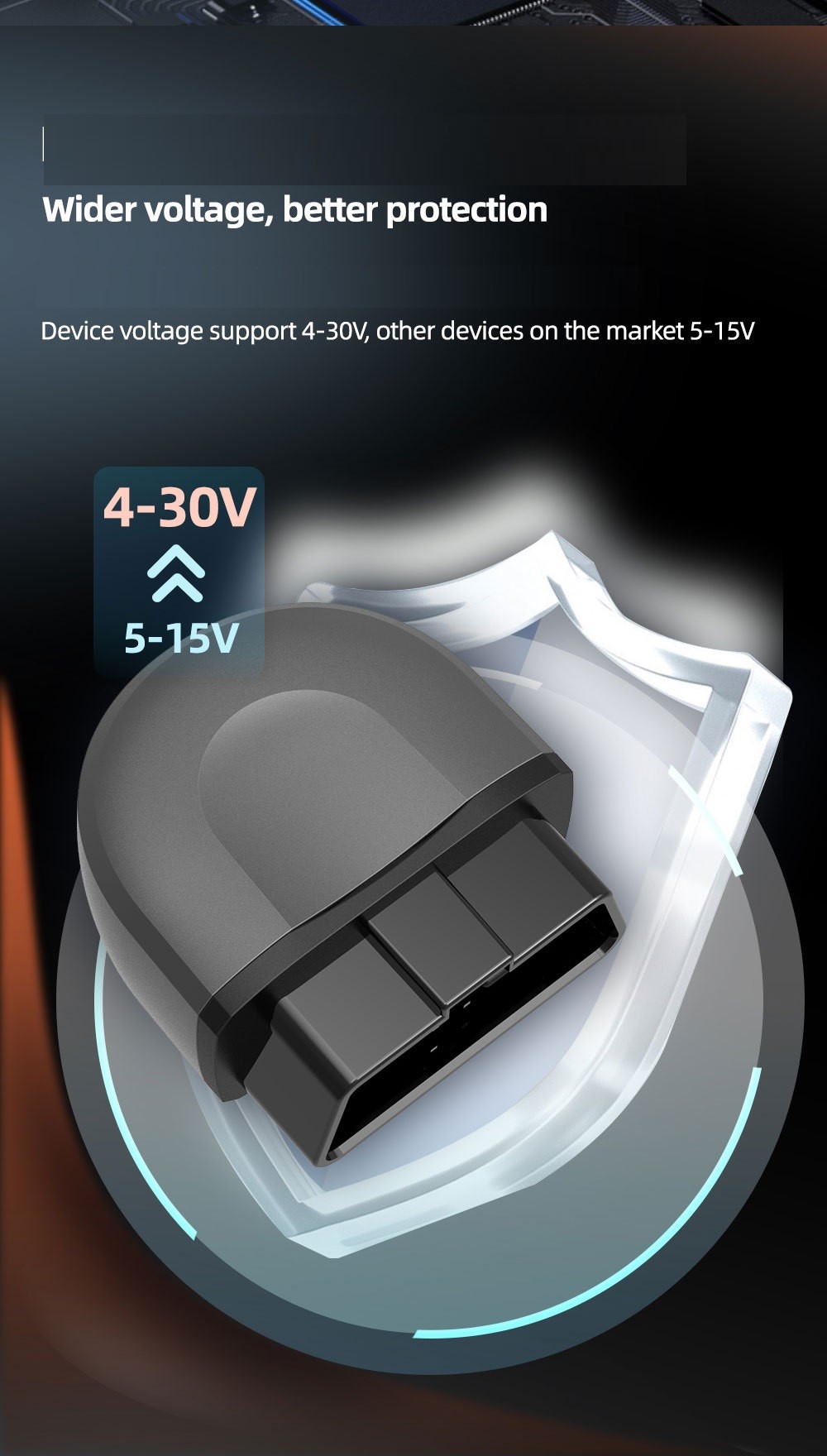

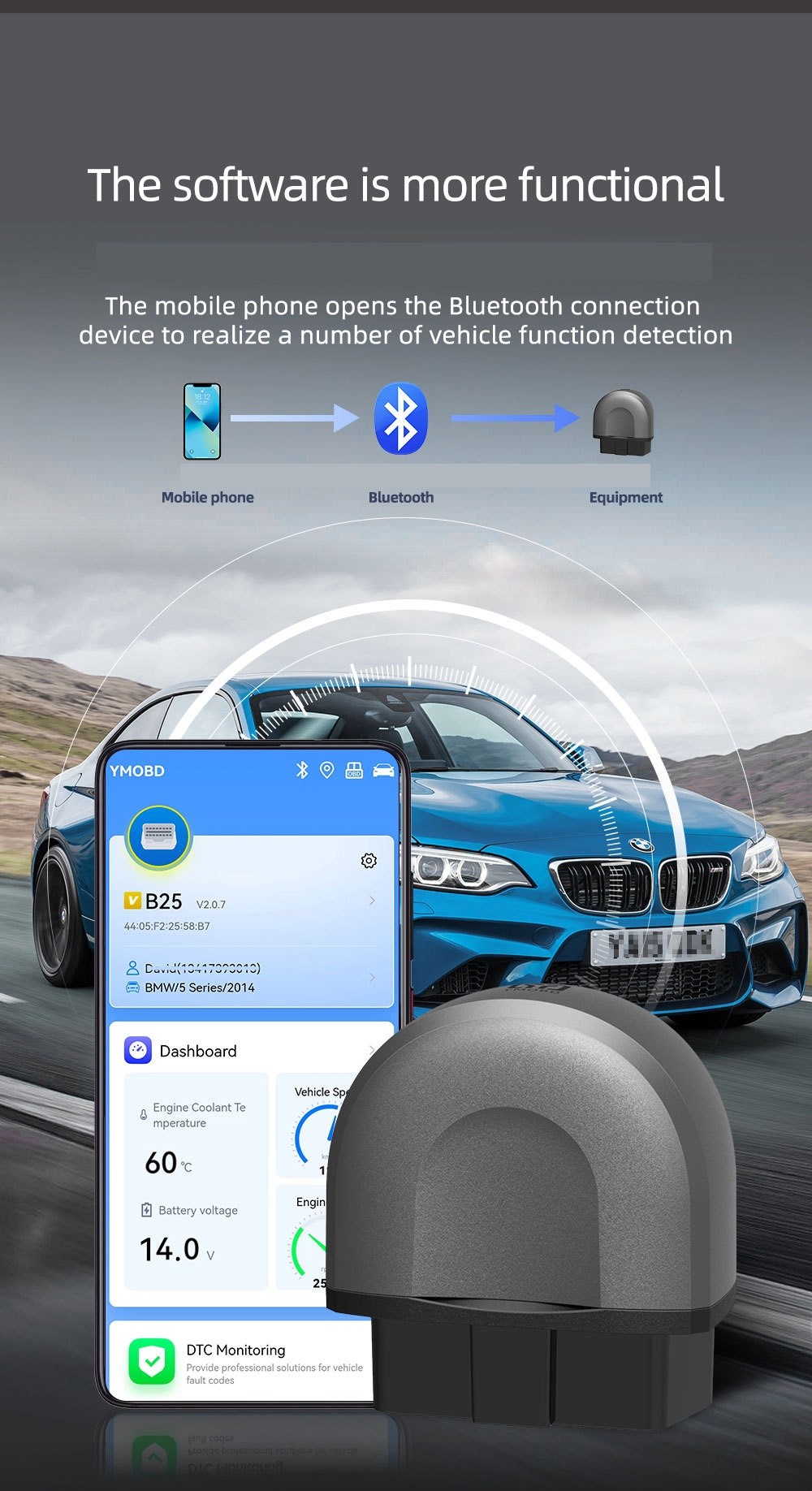

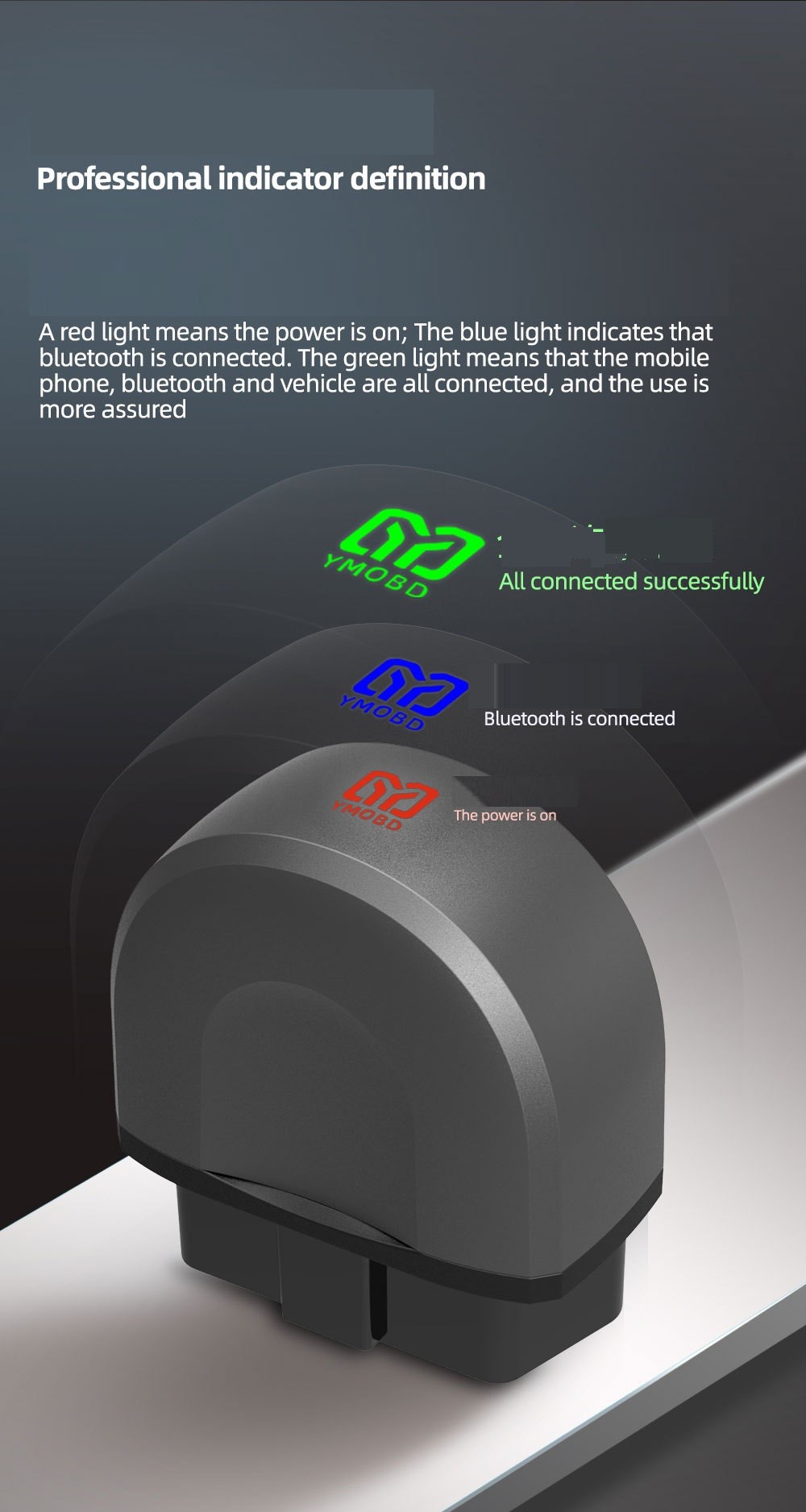

Main control chip: YM1140 Bluetooth version: V5.1, backward compatible. Operating voltage: 5V-28V, typical value 12V, support 12V fuel vehicle Operating temperature: -40℃ to +85℃. Working current: 4mA (turn off the LED indicator, Bluetooth is connected, and the working current under normal communication with the ECU) Sleep mode: The device automatically enters the sleep state after 10 minutes of no Bluetooth connection. The product has three color indicators: Red: Only power on; Blue: The phone has been connected to the diagnostic device; Green: the diagnostic instrument is working (that is, the diagnostic instrument has established communication with mobile phones and vehicles)

OBDII supports 9 decoding protocols as follows: SAE J1850 PWM (41.6kbaud) SAE J1850 VPW (10.4 kbaud) ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) That is, there are a total of 9 agreements supporting all gasoline cars, commonly known as V1.5 version

Net weight: 31g
Product size: 45*50*16mm
Packing size: 64mm*26mm*100mm
Packing quantity: 200PCS
