Working voltage

5-18V

Working temperatere

below -20-65℃

Storage temperature

below -30-70℃

Working currency

50ma

Product size

145*85*28MM

 Packaging size

252*132*36mm

 Single device weight

221G

Carton size

43*36*31.5CM

Qty/ctn

40 pcs

 Gw/ctn

13.8kg

 Nw/ctn

12.96kg

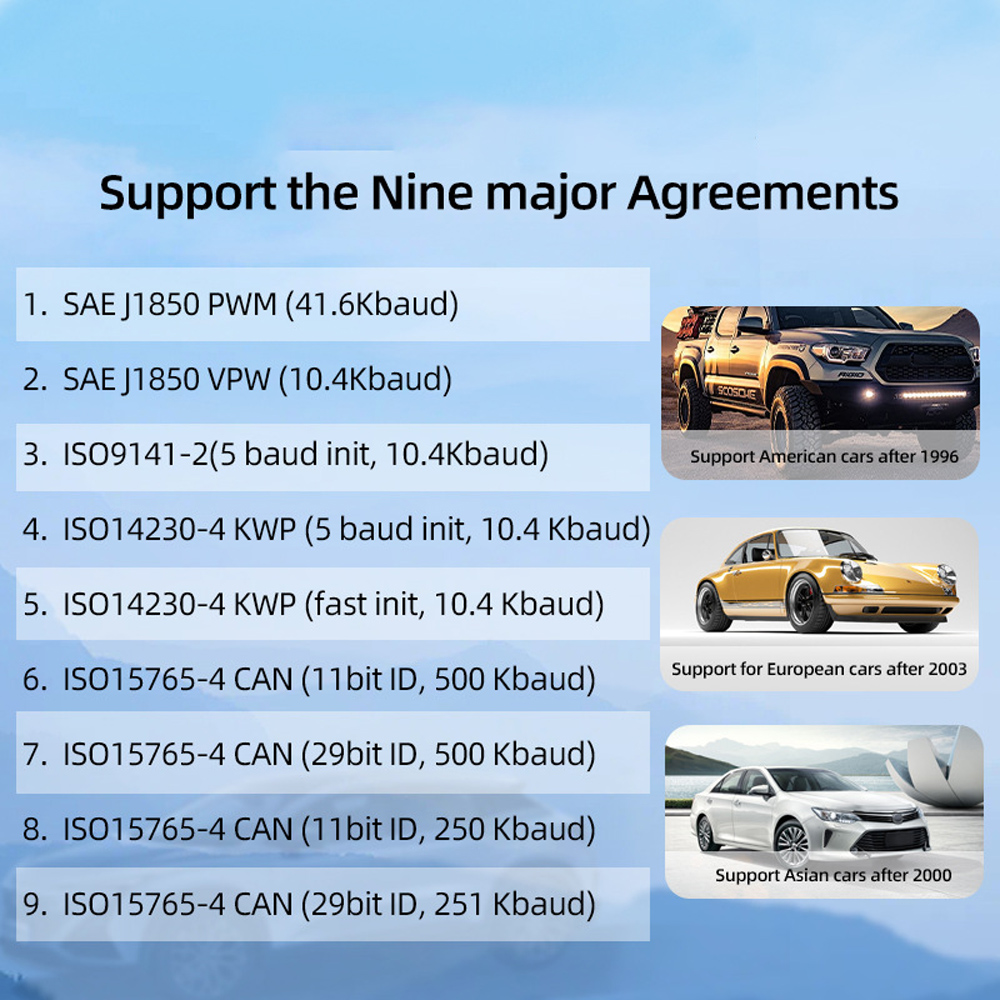

Support protocol

1.  SAE J1850 PWM (41.6Kbaud)
2.  SAE J1850 VPW (10.4Kbaud)
3.  ISO9141-2(5 baud init, 10.4Kbaud)
4.  ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.  ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.  ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.  ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.  ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.  ISO15765-4 CAN (29bit ID, 251 Kbaud)
